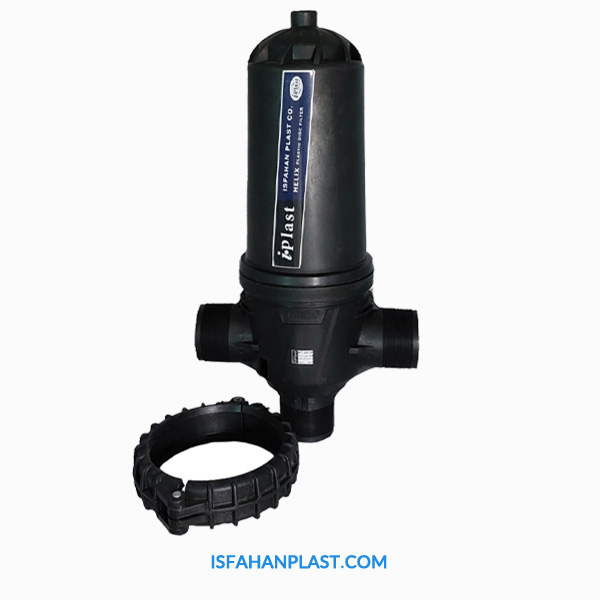

Long Helical Disc Filter
Product description:
Disc filters have extremely narrow grooves on the plastic discs, which catch the particles and suspended substances of water and keep these particles until the washing process, and during the washing process, the particles are cleaned from between the grooves of the discs. .
| کد کالا | شرح کالا |
|---|---|
| 30022146133 | 3 INCH HELICAL LONG DISC FILTER |
| 30022146123 | 2 INCH HELICAL LONG DISC FILTER |
Technical specifications:
In the new generation, the produced filters are designed with a special form to increase the filtration level and ensure the separation of particles, as well as optimal performance during washing.
In such a way that it has radial grooves in both surfaces and in the form of a funnel. That is, their diameter decreases from the surface of the disc towards the inside. These filters are equipped with a helical drop in the water inlet, which if installed in any position Upward or downward, it acts like a hydrocyclone and separates coarse particles.
This action, in addition to helping the filtration process, reduces the need to wash the filter.
Applications:
It is used in irrigation to filter biological water and suspended particles.
